Wellhead equipment
Oil and gas production trees
The KQ (Y) oil and gas production tree is mainly used to control the pressure of the production wellhead and regulate the flow rate of the oil and gas wellhead. It can also be used for special operations such as acid fracturing, water injection, and testing.
Consult now
Details：
Oil and gas production treesKQ (Y)
The KQ (Y) oil and gas production tree is mainly used to control the pressure of the production wellhead and regulate the flow rate of the oil and gas wellhead. It can also be used for special operations such as acid fracturing, water injection, and testing.
Technical parameters of oil and gas production trees
parameter | model | model |
KY65/25 | KQ65/60 | |
Rated pressure | 3500psi (24.5Mpa) | 8500psi (59.5Mpa) |
Nominal diameter | 29/16 inches. (65mm) | 29/16 inches. (65mm) |
working temperature | PU (-29-121 ℃) | PU (-29-121 ℃) |
Using media | Crude, water | Crude, water |
Connection form | Ciamp connection | Flamed connection |
Material level | AA-DD | AA-DD |
Normative level | PSL1-2 | PSL1-3 |
Performance level | PR1-2 | PR1-2 |

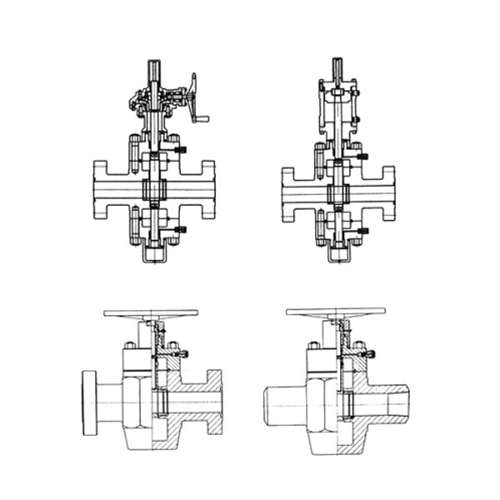

Next：Flat valve
